Part Number: U264-001-APL New
Creates a wireless connection between a vehicle and an Apple iPhone to operate Apple CarPlay functions.
- Recommended for daily travel use, especially sales pros who are always on the go
- Reduces cable clutter in your vehicle while enabling music, navigation, Siri control and more
- Included USB adapter allows connection with your vehicle's USB-A or USB-C port
- Compatible with Apple iPhone 6 or later models that are on iOS 10 and above
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
Features
Enhance Your Driving Experience with a Wireless CarPlay Experience

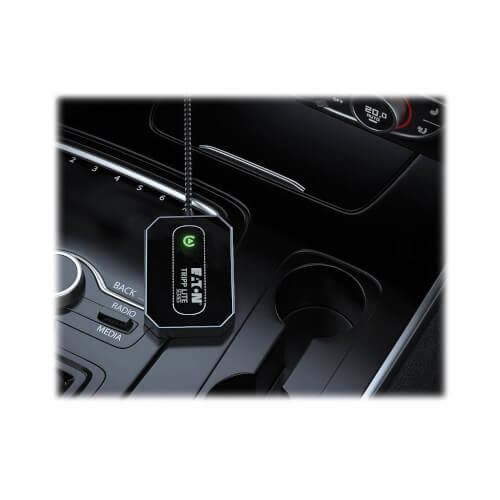

The U264-001-APL adapter provides a wireless connection to Apple CarPlay in vehicles that require a wired CarPlay connection. It is compatible with Apple iPhone 6 or later models that are on iOS 10 and above. Not only does this adapter reduce cable clutter in your vehicle, it also allows you to operate CarPlay functions such as music and podcast control, answer calls and texts via voice-to-text, navigate via Apple Maps and make voice commands through Siri. An included USB-A to USB-C adapter lets you connect to either port in a vehicle.
Easy Installation Allows for Quick Setup and Recurring Use

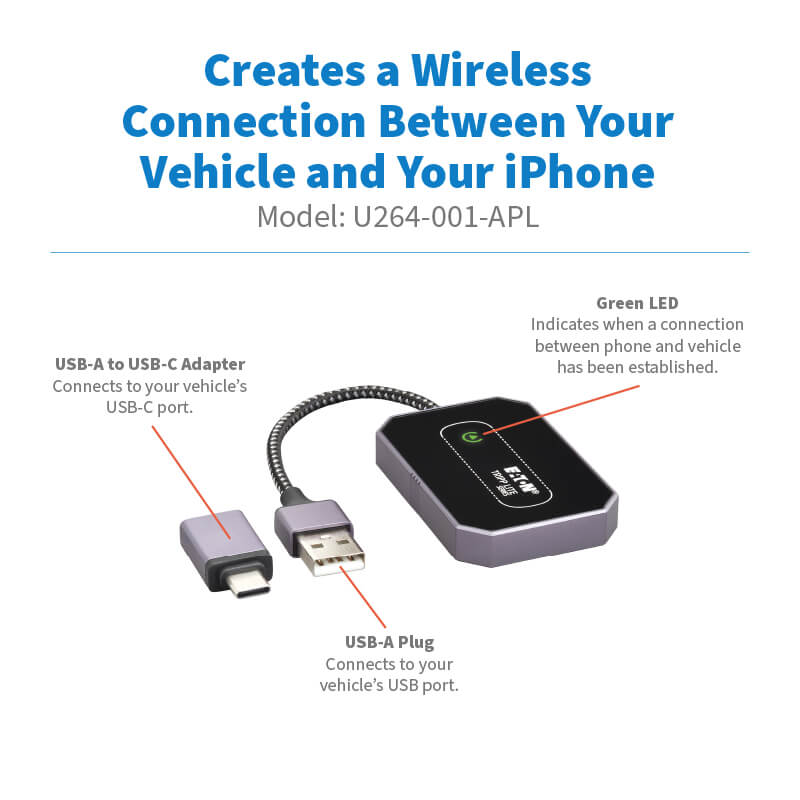

An ideal tool for travelers, particularly sales professionals always on the go, this adapter uses a combination of Bluetooth and Wi-Fi to establish a pairing between the phone and the vehicle and switches to Wi-Fi to maintain the wireless connection. Once the initial connection is established, the U264-001-APL will instantly reconnect to the phone moving forward. A green LED indicates that a connection is established. Note: The U264-001-APL is only compatible with vehicles that require a wired CarPlay connection. Vehicles with support for a Bluetooth connection to CarPlay do not require this device.
System Requirements
- Vehicle with support for wired Apple CarPlay (Note: Vehicles that support Apple CarPlay via a Bluetooth connection do not require this device)
- Apple iPhone 6 or later model on iOS 10 or above
Package Includes

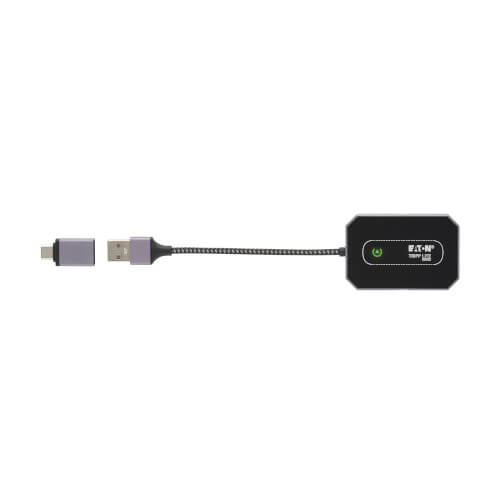

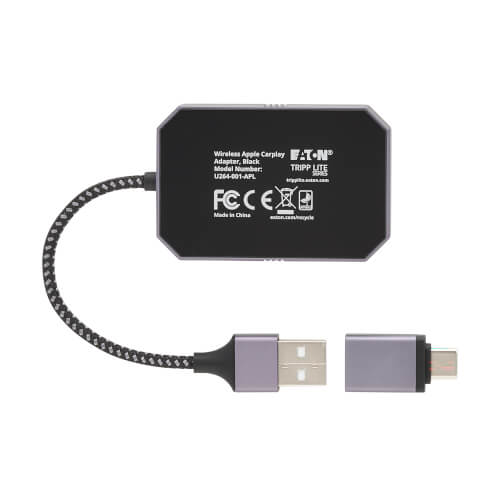

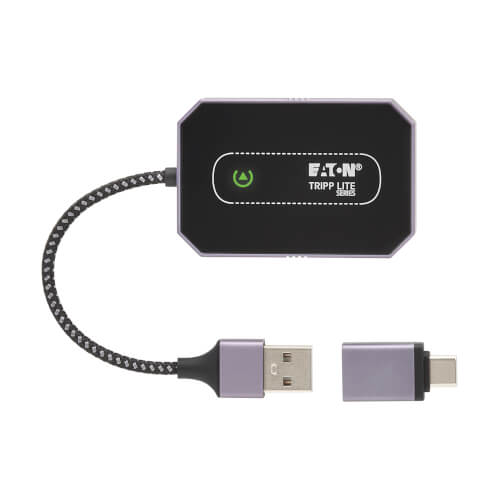

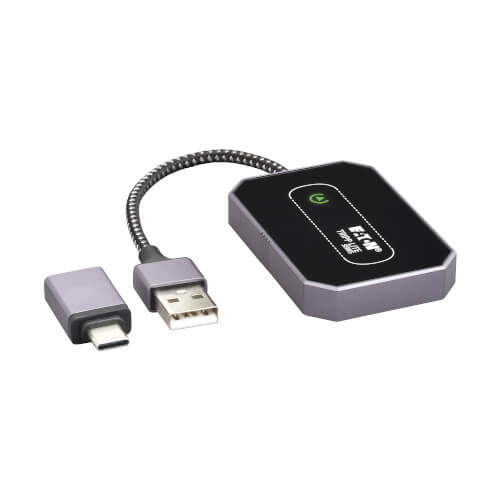

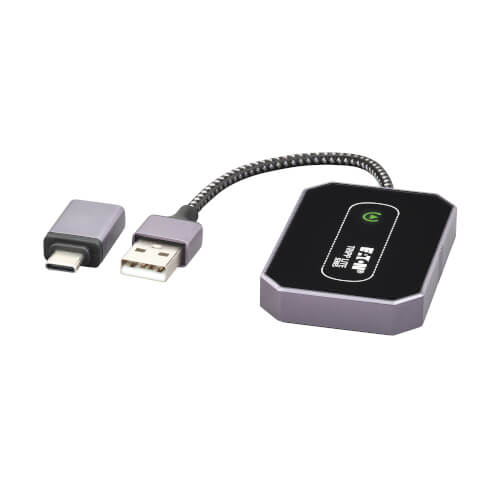

- U264-001-APL Wireless Apple CarPlay Adapter

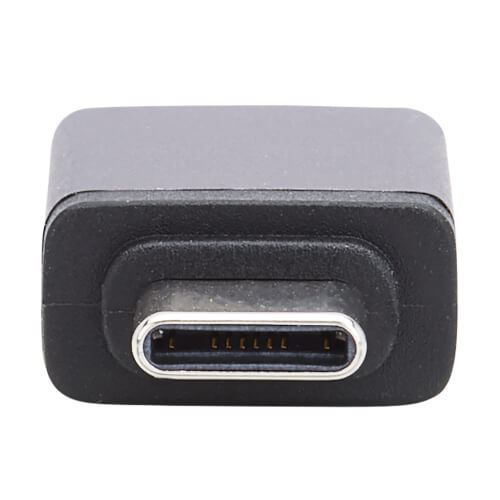

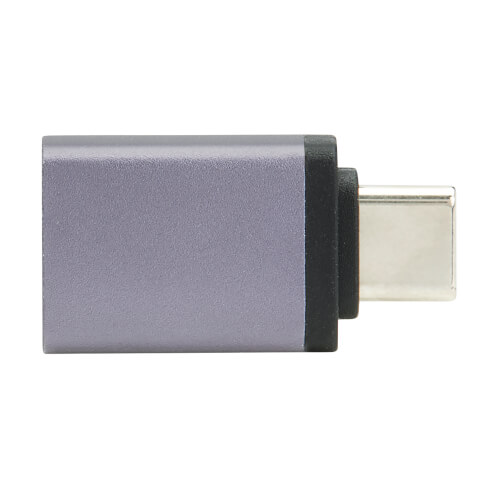

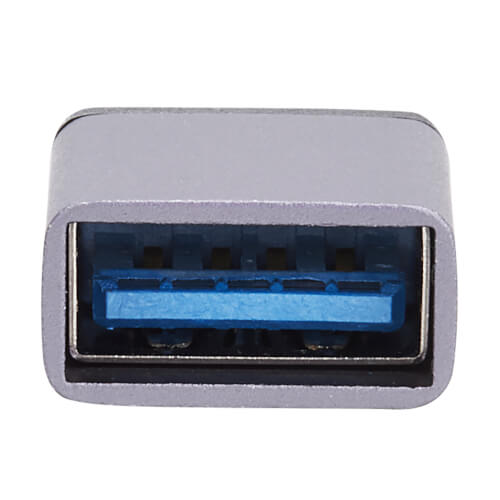

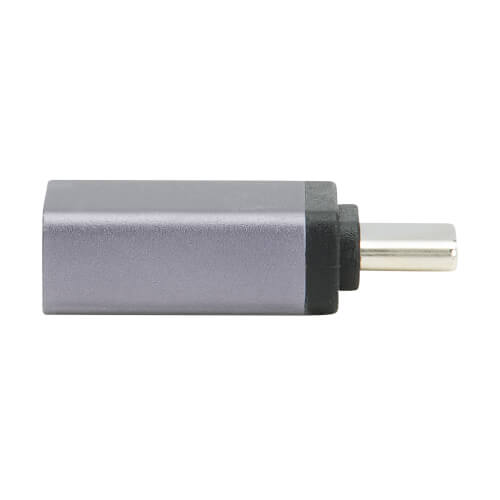

- USB-A to USB-C adapter
- Installation instructions
Specifications
OVERVIEW
| UPC Code | 037332292308 |
| Product Type | USB Wireless Apple Carplay Adapter |
| Device Compatibility | Phone |
| Technology | USB; Wireless |
| Country/Region | Global |

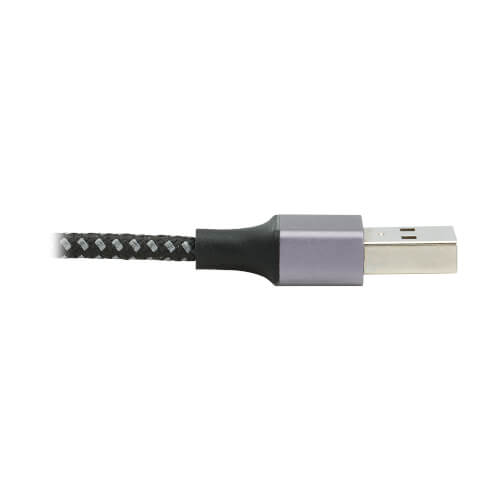

| Host Connector | (1) USB A (MALE) |
INPUT
| Built-In Cable Length (ft.) | 0.33 |
| Built-In Cable Length (in.) | 4 |
| Bus Powered | Yes |
POWER
| Power Source Type | Bus |
CONNECTIONS
| Number of Ports | 0 |

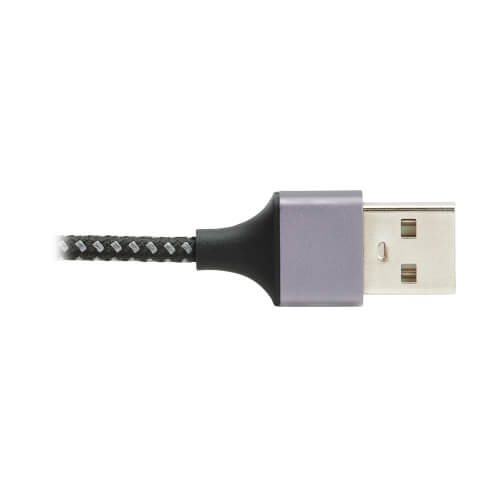

| Side A - Connector 1 | USB A (MALE) |
| Connector Plating | Nickel |
| Connector Style | Straight |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | (1) Connection LED: Turns blue when initially powered on before turning to green (flashes when attempting to connect to iPhone; solid when connection is established). |
PHYSICAL
| Color | Black |
| Material of Construction | MAIN BODY: TEMPERED GLASS AND ALUMINUM; PCB |
| Cable Jacket Color | Black |
| Cable Jacket Material | TPE |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter (OD) | 3.3MM |
| Wire Gauge (AWG) | 28 |
| Cable Length (ft.) | 0.5 |
| Cable Length (in.) | 6 |
| Total Number of Ports | 0 |
| Shipping Dimensions (hwd / in.) | 1.06 x 5.71 x 2.95 |
| Shipping Weight (lbs.) | 0.22 |
| Unit Dimensions (hwd / in.) | 0.550 x 2.320 x 1.570 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.15 |
ENVIRONMENTAL
| Operating Temperature Range | 32° to 122°F (0 to 50°C) |
| Storage Temperature Range | -4° to 158°F (-20° to 70°C) |
| Operating Humidity Range | 10% to 90% RH, Non-Condensing |
| Storage Humidity Range | 0% to 95% RH, Non-Condensing |
FEATURES & SPECIFICATIONS
| Over Current Protection | N |
| USB Hub Ports | No |
| Number of USB Hub Ports | 0 |
| Driver Required | No |
STANDARDS & COMPLIANCE
| Product Certifications | EN 55032; EN 55035; ICES (Canada) |
| Product Compliance | CE (Europe); FCC Part 15 Class B (USA); REACH; RoHS; UKCA; WEEE |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | 3-year limited warranty |
