Part Number: 93PX2EBM480U New
Provides extended runtime for compatible 93PX 3-phase UPS systems used in mission-critical edge and data center applications.
- Includes one pair of 3U EBMs combined in one 6U application
- Connects to select expandable Eaton 93PX UPS systems for extended runtime
- Daisy-chain connector supports additional battery packs for even longer runtime
- Comes with heavy-gauge cabling with high-current 480V DC connectors
- Innovative quick-connect design for easy plug-and-play deployment and service
- 2-year limited warranty
Features
Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime
The 93PX2EBM480U offers extended battery runtime when used in conjunction with Eaton’s 93PX 3-phase UPS systems. It can also be daisy-chained for a maximum of four auto-detected pairs of 3U extended battery modules (EBMs) to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

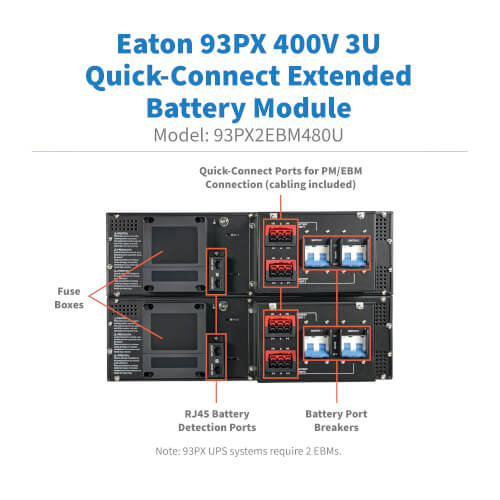

Innovative Quick-Connect Design for Easy Plug-and-Play Deployment and Service

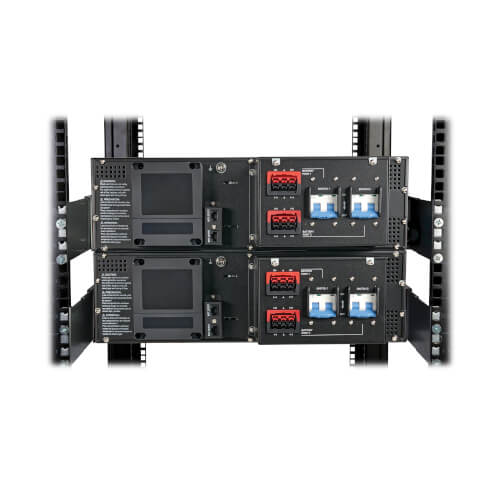

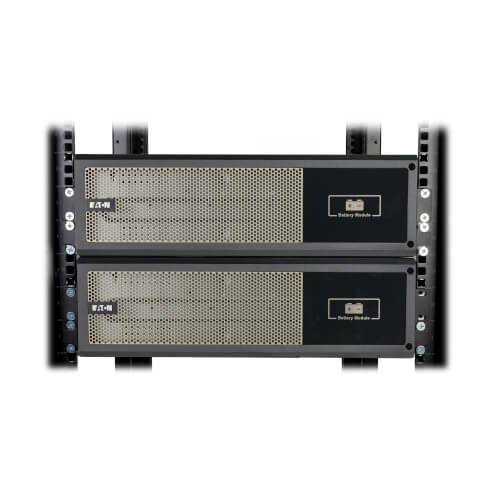

Interconnections between the 93PX2EBM480U, UPS power module(s) and a maintenance bypass panel provide easy plug-and-play setup and serviceability. You can mount all UPS modules in an EIA-standard 19-inch rack using the included hardware, and connect the modules together using the included cables.
Package Includes
- 93PX2EBM480U 6U extended battery module (one pair of 3U EBMs)
- Rack-mounting hardware
- Assorted cabling
- User documentation
Specifications
OVERVIEW
| UPC Code | 037332296023 |
| Accessory Type | Battery |
| Accessory Class | UPS Accessories |
INPUT
| Nominal Input Voltage(s) Supported | 400V AC |
OUTPUT
| Output Capacity (kVA) | 0 |
| Nominal Output Voltage(s) Supported | 230/400V 3-PH Wye |
BATTERY
| Battery Type | Valve Regulated Lead Acid (VRLA) |
PHYSICAL
| Unit Dimensions (hwd / in.) | 5.080 x 17.240 x 27.280 |
| Unit Weight (lbs.) | 157.6 |
STANDARDS & COMPLIANCE
| Product Certifications | IEC 62040-2; UL 1778 |
| Product Compliance | FCC Part 15 Class B (USA) |
WARRANTY & SUPPORT
| Product Warranty Period (U.S. & Canada) | 2-year limited warranty |
