Part Number: B118-008-4KL New
Compact 4K splitter transmits 4K video and audio from one HDMI source to 8 HDMI displays at the same time.
- Supports 4K @ 60 Hz (YUV 4:4:4) with High Dynamic Range and Dolby Vision
- Built-in downscaling allows video transmission to 4K and 1080p displays simultaneously
- Front-panel EDID button conveniently resolves resolution conflicts without a laptop
- Compact size fits comfortably in portable AV kits or behind displays
- Plug-and-play operation: no software required for easy, immediate installation
- 3-year limited warranty
Features
4K HDMI Splitter Transmits 4K Video + Audio to 8 HDMI Displays at the Same Time

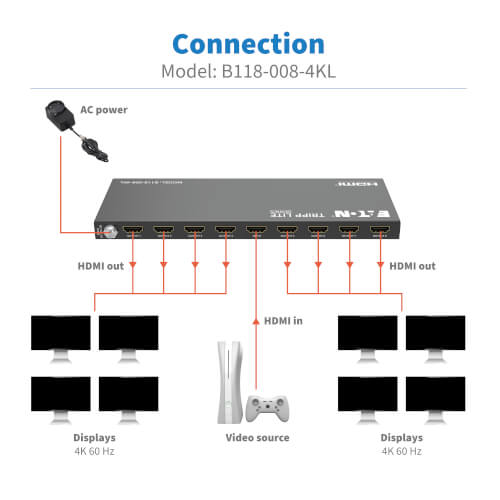

Recommended for classrooms, retail and event setups where tight space and quick setup matter, this Ultra High Definition (UHD) HDMI distribution amplifier is quick and easy to install. It connects to an HDMI source device, such as a laptop or media server, and transmits a 4K audio/video signal to eight HDMI monitors, projectors or televisions simultaneously while maintaining signal integrity. Multi-resolution output allows video content to be presented at the best resolution for each display’s capabilities, including 4K and 1080p displays.
Transmits 4K Video with HDR10, Dolby Vision and 4:4:4 Color
The B118-008-4KL supports Ultra HD 4K resolutions up to 3840 x 2160 at 60 Hz with 36-bit Deep Color (12 bits per channel) and LPCM 7.1-channel surround sound. High Dynamic Range (HDR10 and Dolby Vision HDR) offers a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This splitter also supports 18 Gbps bandwidth for uncompressed 4:4:4 chroma subsampling, ensuring crisp text and fine detail in presentations and digital signage. Note: For best performance, use HDMI 2.0 cables up to 16 feet on input and 16 feet on output (32 feet total). The splitter can transmit video at 4K @ 30 Hz or 1080p up to 65 feet combined.

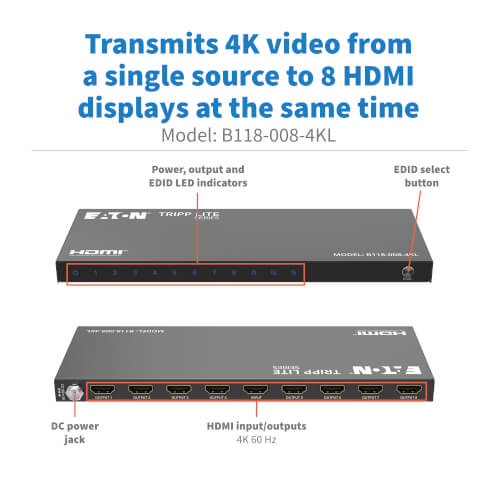

EDID Control Made Easy
The B118-008-4KL supports three different EDID (Extended Display Identification Data) modes, which you can control using the front-panel button. Auto Mode automatically finds the optimal video resolution and audio format for all connected displays. Copy Mode copies the EDID from Output 1 and tells the source to use that setting. If a connected display can’t manage that resolution, the splitter will downscale the video for that display while keeping the same audio, HDR and color depth as Output 1. Downscale Mode downscales the 4K signal to 1080p for connected 1080p displays while sending full 4K to all connected 4K displays. No laptop is needed to resolve any resolution conflicts.
Compact, Portable Build for Tight Spaces and Travel AV Kits
Measuring less than one foot wide and one inch tall, this splitter is ideal for tight spaces. The compact metal design fits easily behind displays or in small AV cabinets, and can be stored in a portable AV kit for pop-up events and temporary installations. The external power supply features a four-foot (1.2-meter) cord and includes adapter plugs for North America (NEMA 1-15P), Europe (CEE 7/16 Schuko), UK (BS 1363) and Australia (AS/NZS 3112), allowing for fewer headaches when traveling to an install. The plug-and-play HDMI splitter requires no software to download and install.
System Requirements
- Source device with HDMI output (media server, Blu-ray player, satellite/cable box, laptop) that supports 4K @ 60 Hz
- Display devices with HDMI input (HDTV, projector, monitor) that support 4K or 1080p
- High-speed HDMI 2.0 cables no longer than 15 ft. (4.6 m) for input and output
- AC power outlet for included 5V DC adapter

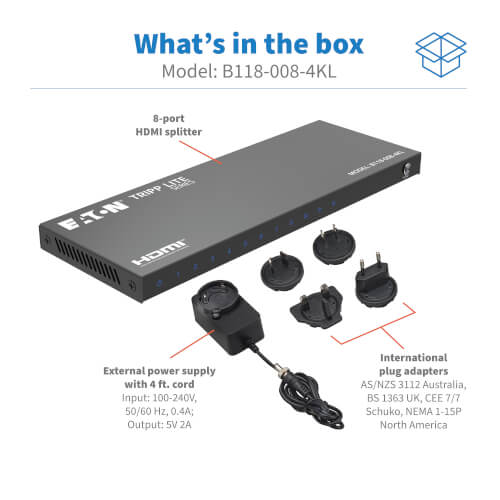

Package Includes
- B118-008-4KL 8-Port HDMI Splitter
- External power supply (Input: 100–240V, 50/60 Hz, 0.4A; Output: 5V 2A)
- (4) International plug adapters (North America, Europe, U.K., Australia)
- Installation Instructions
Specifications
OVERVIEW
| UPC Code | 037332296931 |
| Product Type | Splitter |
| Device Compatibility | Monitor/HDTV |
| Technology | HDMI |
| Host Connector | HDMI (FEMALE) |
VIDEO
| Video Input | HDMI (FEMALE) |
| Video Output | HDMI (FEMALE) |
| Video Ports | (8) HDMI (FEMALE) |
| Video Ports Details | HDMI 2.0; HDCP 1.4; HDCP 2.2 |
| Resolutions Supported |
|
| Supported Resolutions | 1280x720 (720p); 1920x1080 (1080p); 3840x2160 (4K) |
| Max Supported Video Resolution | 4K @ 60Hz (4096 x 2160) |
| Signal Range (ft) | 32 |
| Signal Range (m) | 10 |
| Max Supported Color Depth | 36-bit Deep Color |
| HDR Support | Yes |
| 3D Video Supported | Yes |
| Chroma Sub Sampling | 4:2:0; 4:2:2; 4:4:4 |
| Maximum Signal Range (ft) | 32 |
| Maximum Signal Range Details |
|
| EDID Support | Yes |
| Signal Transmission | Unidirectional |
| Bandwidth | 18 Gbps |
AUDIO
| Audio Ports | (8) HDMI (FEMALE) |
| Audio Input | HDMI |
| Audio Output | HDMI |
| Audio Specification | Compressed: DTS, Dolby Digital (including DTS-HD Master Audio and Dolby TrueHD) + Uncompressed: LPCM |
INPUT
| AC Power Adapter Plug(s) | AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America |
| AC Power Adapter Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.4A |
| AC Power Adapter Output Specs (V / A) | 5V / 2A |
| AC Power Adapter Cord Length (ft.) | 4 |
| AC Power Adapter Cord Length (m) | 1.2 |
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
| Input Frequency | 50/60Hz |
POWER
| Power Source Type | AC Adapter |
| Power Over Cable (PoC) Support | No |
| AC Adapter | Input: 100-240V, 50/60Hz, 0.4A; Output: 5V, 2A, 4 ft |
| Power Consumption (Watts) | 10.00 |
CONNECTIONS
| Number of Ports | 9 |
| Side A - Connector 1 | (1) HDMI (FEMALE) |
| Side B - Connector 1 | (8) HDMI (FEMALE) |
| Connector Plating | Nickel |
| Input x Output | 1 x 8 |
| Daisy-chainable / Cascadable | No |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | POWER: Power LED Indicator Blue light, 1-8 HDMI Output: 1-8 LED Indicator Blue light Auto Mode LED Indicator Blue light: ON is In Normal Auto EDID Mode which gets the Lower Resolution and Audio Format of the Both Output for the Input Device to Output the Signal to Fit Both Outputs, Copy Mode LED Indicator Blue light, ON is In Copy EDID Mode which copy the Output1 Resolution and Audio Format for the Input Device to Output the Signal Downscaler Mode LED Indicator Blue light: ON is In Downscaler EDID Mode which can downscale the Input 4K Resolution to 1080p by the FHD (1080p) Display and 4K Resolution to the 4K Displays Simultaneously. |
PHYSICAL
| Color | Black |
| Material of Construction | Metal |
| Form Factor/Mounting Options | Box |
| Shipping Dimensions (hwd / in.) | 2.17 x 11.50 x 9.37 |
| Shipping Weight (lbs.) | 1.73 |
| Unit Dimensions (hwd / in.) | 1.170 x 9.250 x 3.940 |
| Unit Dimensions (in.) | 1.17 x 9.25 x 3.94 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.85 |
ENVIRONMENTAL
| Operating Temperature Range | 32° to 158°F (0° to 70°C) |
| Storage Temperature Range | 14° to 176°F (-10° to 80°C) |
| Relative Humidity | 0-85% non-condensing |
| Operating Humidity Range | 10% TO 85% RH, NON-CONDENSING |
| Storage Humidity Range | 5% TO 90% RH, NON-CONDENSING |
COMMUNICATIONS
| Signal Range (ft.) | 32 |
| Transmission Distance | 4K/60 Hz: 32 ft (10 meters); 4K/30 Hz: 65 ft (20 meters); 1080p: 65 ft (20 meters) |
| EDID Compatible | Yes |
| IR Remote Extension Support | No |
| RS-232 Serial Extension Support | No |
| Latency | Zero |
FEATURES & SPECIFICATIONS
| 10/100 Ethernet Extension Support | No |
| Integrated/Removable Cable | No |
| Multi-Resolution Support | Yes |
| HDCP Specification | 1.4; 2.2 |
| Driver Required | No |
STANDARDS & COMPLIANCE
| External Power Supply Certifications | FCC; UL; cUL |
| Product Compliance | CE (Europe); FCC (USA); RoHS; UKCA; WEEE |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | 3-year limited warranty |
