Part Number: B161-101 New
Converts HDMI audio/video to an IP-based signal that is transmitted to receivers or an Ethernet network switch 393 ft. away via Cat6 cable.
- Complete 4K HDMI over IP kit includes both an encoder and a decoder
- Supports 1-to-1 or 1-to-many AV installations with additional B161-001 receivers
- Supports 4K @ 30 Hz video resolutions with 3D and 12 bits per channel
- Supports remote USB mouse/keyboard connections for KVM functionality
- Plug-and-play operation with no software required for easy, immediate installation
- 1-year limited warranty

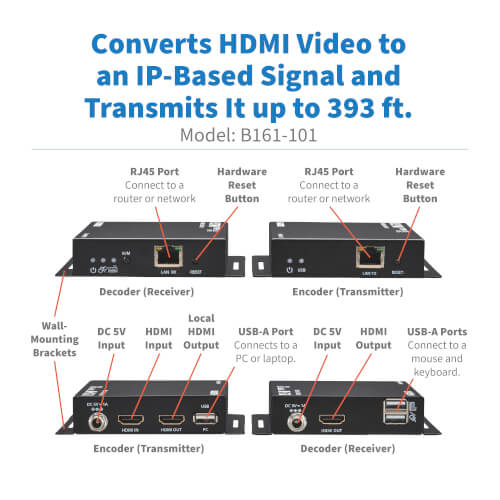

Features
An Effective Digital Signage Solution Designed for Easy Setup and Operation
This HDMI over IP encoder and decoder kit supports visually lossless 4K signals with low latency up to 393 feet (120 meters) point to point or via a standard Gigabit Ethernet switch. Engineered to meet today’s demands of large-scale, multi-display 4K signal transmission, the B161-101 is ideal for a wide range of indoor environments, such as trade shows, airports, university campuses, conference centers and shopping centers. The kit follows TCP/IP standards for reliable AV over IP installations.
Lightweight Compression with Ultra-Low Latency
The kit uses advanced video lossless compression technology to extend 4K video at 30 Hz with 3.4 Gbps/340 mHz per channel (10.2 Gbps all channels), 3D video support and 12-bit per channel color depth.
Limitless Scalability and Flexibility
Mix and match the latest 4K displays in simple point-to-point setups or more elaborate point-to-multipoint setups via LAN (local area network) without distance limitations. In conjunction with multiple B161-001 extender receivers (sold separately), this kits offers multi-functionality in video wall and daisy-chain applications.
Configure Video Installations with a Keyboard and Mouse
Connect the transmitter's USB-A port to a computer and connect a keyboard and mouse to the KVM ports on the receiver to control the video installation from the display side.
Extend Multiple B161-Series Decoders
Connect multiple B161-001 decoder units (sold separately) through a dedicated Ethernet network switch. Cabling and system deployment is easy with fewer cables needed. The daisy-chain function is especially ideal for large-scale deployment covering a wide area, such as hotels, airports, shopping malls and expo centers.
System Requirements
- Source device with HDMI output (Blu-ray player, media server, satellite/cable box, laptop)
- Display device(s) with HDMI input (HDTV, projector, monitor)
- Google Chrome, Mozilla Firefox or Opera web browser
- Additional B161-001 receivers for one-to-many installations

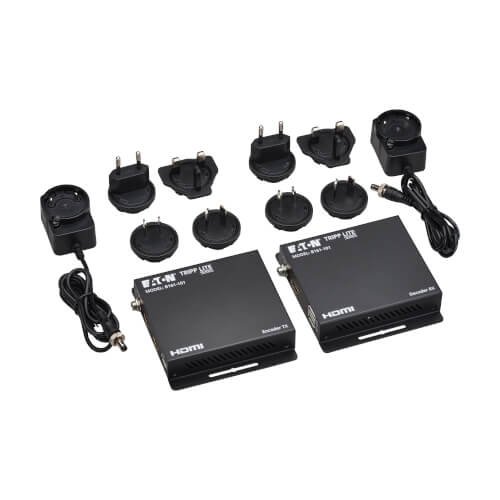

Package Includes
- Encoder (Transmitter)
- Decoder (Receiver)
- (2) External power supplies (Input: 100–240V, 50/60 Hz, 0.2A; Output: 5V 1A)
- (4) International plug adapters: NEMA 1-15P (North America), CEE 7/16 Schuko (Europe), BS 1363 (UK) and AS/NZS 3112 (Australia)
- USB-A cable
- Installation instructions
Specifications
OVERVIEW
| UPC Code | 037332297051 |
| Product Type | Transmitter |
| Technology | Cat5/5e; Cat6; HDMI; USB 2.0 (High Speed) |
| Country/Region | Global |
VIDEO
| Video Input | HDMI (FEMALE) |
| Video Output | HDMI (FEMALE) |
| Video Ports | HDMI (FEMALE) |
| Video Ports Details | HDMI 1.4 |
| Resolutions Supported | Supported video resolutions include: 480p / 720p / 1080i / 1080p / 4K @ 30 Hz |
| Supported Resolutions | 1280x720 (720p); 1920x1080 (1080p); 3840x2160 (4K) |
| Max Supported Video Resolution | 4K @ 30Hz |
| Max. Distance (Between any 2 Units) | 393 ft (120 meters) |
| Transmitter Video Input | HDMI |
| Transmitter - Number of Video Outputs | 1 |
| Receiver/Transceiver Video Output | HDMI |
| Receiver - Number of Video Outputs | 1 |
| Signal Range (ft) | 393 |
| Signal Range (m) | 120 |
| Max Supported Color Depth | 12-bit; 36-bit True Color |
| HDR Support | No |
| 3D Video Supported | Yes |
| Bandwidth | 10.2 Gbps |
INPUT
| AC Power Adapter Plug(s) | AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America |
| AC Power Adapter Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.2A |
| AC Power Adapter Output Specs (V / A) | 5V / 1A |
| AC Power Adapter Cord Length (ft.) | 4 |
| AC Power Adapter Cord Length (m) | 1.2 |
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
POWER
| Power Source Type | AC Adapter |
| AC Plug Type | AS/NZS 3112; BS1363; CEE 7/16 Schuko; NEMA 1-15P |
| Power Over Cable (PoC) Support | No |
| DC Barrel Plug | OD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve |
| Power Consumption (Watts) | 5.00 |
| Output Volt/Amp (from external power supply) | 5.0V/1.0A |
| Power Consumption Detail | TX: 2W, RX: 2W |
CONNECTIONS
| Number of Ports | 3 |
| Side A - Connector 1 | (1) RJ45 (FEMALE) |
| Side A - Connector 2 | (2) HDMI (MALE) |
| Side A - Connector 3 | (1) USB A (FEMALE) |
| Side B - Connector 1 | (1) RJ45 (FEMALE) |
| Side B - Connector 2 | (1) HDMI (MALE) |
| Side B - Connector 3 | (2) USB A (FEMALE) |
| Connector Plating | Nickel |
| Daisy-chainable / Cascadable | Yes |
USER INTERFACE, ALERTS & CONTROLS
| Front Panel LEDs | 5 |
| LED Indicators | Encoder/TX: (1) Power LED Indicator- LED will illuminate when AC power is detected; (1) USB LED Indicator- LED will illuminate when USB Signal is detected. When no USB Signal is detected, the LED indicator will be OFF. Decoder/RX: (1) Power LED Indicator- LED will illuminate when AC power is detected; (1) Mouse- LED will illuminate when a mouse is connected. When no mouse is detected, the LED indicator will be OFF. (1) Keyboard- LED will illuminate when a keyboard is connected. When no keyboard is detected, the LED indicator will be OFF. |
PHYSICAL
| Color | Black |
| Material of Construction | Metal |
| Included Mounting Accessories | No |
| Shipping Dimensions (hwd / in.) | 2.16 x 11.49 x 9.37 |
| Shipping Weight (lbs.) | 2.12 |
| Unit Dimensions (hwd / in.) | 6.700 x 5.010 x 1.140 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 1.48 |
ENVIRONMENTAL
| Operating Temperature Range | 32° to 158°F (0° to 70°C) |
| Storage Temperature Range | 14° to 176°F (-10° to 80°C) |
| Relative Humidity | 5 to 90% RH, Non-Condensing |
| BTUs | DC: 16BTU; POE: 20BTU |
COMMUNICATIONS
| Signal Range (ft.) | 393 |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Transmission Distance | 393 ft (120m) |
| EDID Compatible | Yes |
| IR Remote Extension Support | No |
| RS-232 Serial Extension Support | No |
| USB Extension Support | Yes |
FEATURES & SPECIFICATIONS
| 10/100 Ethernet Extension Support | Yes |
| Integrated/Removable Cable | No |
| Multi-Resolution Support | No |
| HDCP Specification | 1.4 |
| Driver Required | No |
| Recommended Category Cable | Cat5e / Cat6 |
STANDARDS & COMPLIANCE
| External Power Supply Certifications | C-Tick; CE; FCC; PSE; RoHS; TUV; UL; WEEE; cUL |
| Product Certifications | NOM (Mexico) |
| Product Compliance | CE (Europe); REACH; RoHS; UKCA; WEEE |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | 1-year limited warranty |
